harnessflex orange conduit
Click to enlarge
Home Conduit CTPA Conduit CTPA08/OR 8mm CTPA Orange Flexible Conduit – 100m
YPS404040 Y Piece
Back to products
harnessflex orange conduit
CTPA12/OR 12mm CTPA Flexible Conduit - 100m
Harnessflex

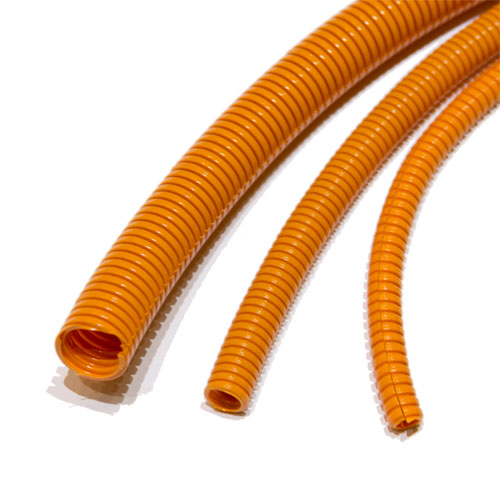

CTPA08/OR 8mm CTPA Orange Flexible Conduit – 100m

CTPA Lightweight Extra flexible conduit, Modified Polyamide 6

CTPA general purpose, lightweight loom conduit suitable for automotive harness applications. It can withstand extremes of temperatures and resists automotive oils and solvents. It is extremely tough and has a high impact strength and fatigue life. CTPA conduits provide protection against mechanical shock and ingress of water whilst maintaining their form through tight bend radii.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote loading
SKU: CTPA08/OR Category: CTPA Conduit
Share:
  • Description
  • Additional information
  • About Harnessflex
Description

CTPA Lightweight Extra flexible conduit, Modified Polyamide 6

CTPA general purpose, lightweight loom conduit suitable for automotive harness applications. It can withstand extremes of temperatures and resists automotive oils and solvents. It is extremely tough and has a high impact strength and fatigue life. CTPA conduits provide protection against mechanical shock and ingress of water whilst maintaining their form through tight bend radii.

Properties
  • High flexibility & fatigue life
  • Very high abrasion, impact and shock resistance
  • Temperature range: -40ºC to 120ºC
  • Temperature range short-term: 150°C
  • UV Resistance – Very High (Black), Medium (Grey, Orange and Red)
  • IP40 – IP67 rated (Depending on fitting)
  • Available colours:
  • Black (BL), Red (RAL3031) & Orange (RAL2003)
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV)EU200/53/EC
  • UL94 HB
Additional information
Brand

Harnessflex

About Harnessflex
Harnessflex Logo
Harnessflex ® is a leading designer and manufacturer of flexible conduit systems and connector interfaces that protect critical electrical wiring in the automotive industry. Harnessflex is principally focused on chassis and engine manufacturers within bus, agricultural and heavy duty vehicle markets. A wide range of slit and unslit corrugated flexible conduits are available in a variety of materials. Used in combination with Harnessflex sealed or hinged fittings or connector interfaces they can meet the exacting needs for protection of heavy vehicle wiring harnesses.

    •  Harnessflex Conduit Catalog
    •
    •  Harnessflex TempGuard Catalog
