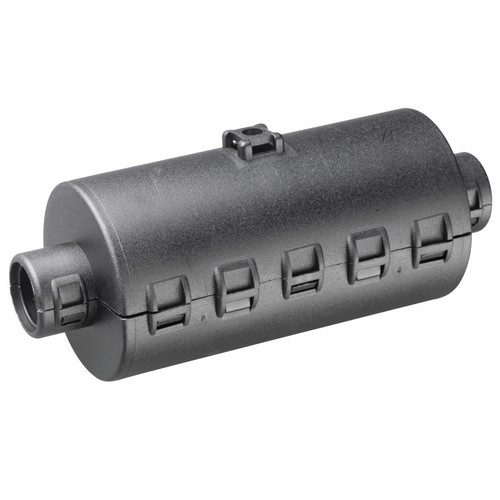

CPS422020 Hinged Shroud - Image 1
Click to enlarge
CPS421616 Hinged Shroud
CPS421616 Hinged Shroud
Back to products
CTPA08 8mm CTPA Flexible Conduit - 100m
CTPA08 8mm CTPA Flexible Conduit - 100m
Harnessflex

CPS422020 Hinged Shroud

External Hinged Protective shroud

One-piece cover providing protection for in-line connectors, fuse links, circuit breakers and splicing areas. The CPS shrouds can be used as a harness datum, due to the integrated cable tie/fir tree facility. The strong construction allows for the protection of delicate connections, or as an alternative when an interface/backshell isn’t available. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote
SKU: CPS422020 Category:
Description

External Hinged Protective shroud

One-piece cover providing protection for in-line connectors, fuse links, circuit breakers and splicing areas. The CPS shrouds can be used as a harness datum, due to the integrated cable tie/fir tree facility. The strong construction allows for the protection of delicate connections, or as an alternative when an interface/backshell isn’t available. These fittings are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.

Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – Conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – Each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Additional information
Brand

Harnessflex
About Harnessflex
Harnessflex Logo
Harnessflex ® is a leading designer and manufacturer of flexible conduit systems and connector interfaces that protect critical electrical wiring in the automotive industry. Harnessflex is principally focused on chassis and engine manufacturers within bus, agricultural and heavy-duty vehicle markets. A wide range of slit and unslit corrugated flexible conduits are available in a variety of materials. Used in combination with Harnessflex sealed or hinged fittings or connector interfaces, they can meet the exacting needs for protection of heavy vehicle wiring harnesses.
