Home Connector Interfaces AMP AMPSeal 16 High Temperature CIH12-90-AT3PL Interface
CIH08-MP2 Interface
Back to products
CIH12-90-DT6 Interface
Harnessflex

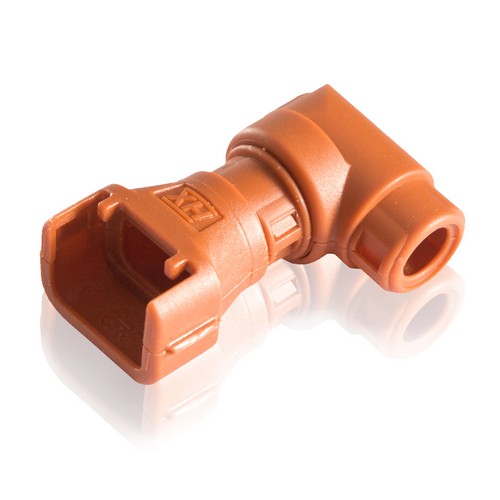

CIH12-90-AT3PL Interface

External Hinged Connector Interface

A range of 90° elbow interfaces offering a compact and high integrity connection between Ampseal 16 automotive connectors and Harnessflex conduit systems. These interfaces provide complete cable protection right up to the connector. They also provide strain relief and protection from high pressure washing, helping to maintain the sealing integrity of the connector. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote loading
SKU: CIH12-90-AT3PL Category: High Temperature
Share:
  • Description
  • Additional information
  • About Harnessflex
Description

External Hinged Connector Interface

A range of 90° elbow interfaces offering a compact and high integrity connection between Ampseal automotive connectors and Harnessflex conduit systems. These interfaces provide complete cable protection right up to the connector. They also provide strain relief and protection from high pressure washing, helping to maintain the sealing integrity of the connector. These fittings are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore.

Features
  • One-piece external design for unrestricted bore and quick assembly with no tools.
  • High pull-off strength – conduit corrugations sit tightly into joiner junctions.
  • Conduit size labels – each junction indicates nominal conduit size to aid installation
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Additional information
Brand

Harnessflex

About Harnessflex
Harnessflex Logo
Harnessflex ® is a leading designer and manufacturer of flexible conduit systems and connector interfaces that protect critical electrical wiring in the automotive industry. Harnessflex is principally focused on chassis and engine manufacturers within bus, agricultural and heavy duty vehicle markets. A wide range of slit and unslit corrugated flexible conduits are available in a variety of materials. Used in combination with Harnessflex sealed or hinged fittings or connector interfaces they can meet the exacting needs for protection of heavy vehicle wiring harnesses.

    •  Harnessflex Conduit Catalog
    •
    •  Harnessflex TempGuard Catalog
