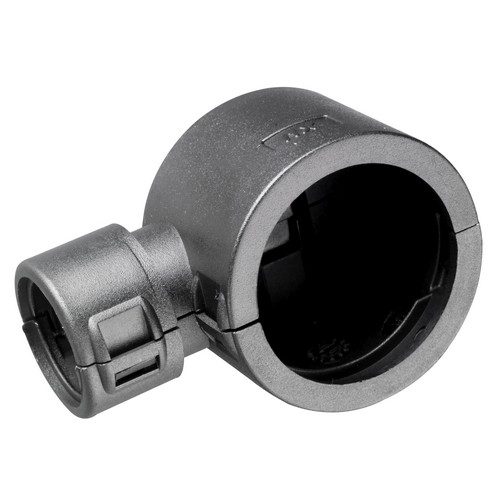

CI16-LK20 Interface
Hinged Connector Interface
Clip-on elbow interface for Kostal in-line connector. Providing high integrity connections to all types of slit and un-slit Harnessflex conduit systems to offer the maximum flexibility and space utilization for harness design.
Competitive Pricing
Cost-effective solutions
Quality Products
Trusted quality
Industry Knowledge
30+ years of experience
Customer Driven
Tailored solutions
Hinged Connector Interface
Clip-on elbow interface for Kostal in-line connector. Providing high integrity connections to all types of slit and un-slit Harnessflex conduit systems to offer the maximum flexibility and space utilization for harness design.
Features
- IP67 – IP68 (2 bar for 30 minutes) SRN sealing bush protects against ingress of water and dust.
- Polyamide (Nylon) 66
- Temperature Range: -40ºC to 150ºC
- Very high UV resistance
- Self extinguishing, low smoke toxicity & halogen free
Conformity
- ADR approved (NC conduits ONLY)
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC
| Brand | Harnessflex |
|---|
Harnessflex ® is a leading designer and manufacturer of flexible conduit systems and connector interfaces that protect critical electrical wiring in the automotive industry. Harnessflex is principally focused on chassis and engine manufacturers within bus, agricultural and heavy-duty vehicle markets. A wide range of slit and unslit corrugated flexible conduits are available in a variety of materials. Used in combination with Harnessflex sealed or hinged fittings or connector interfaces, they can meet the exacting needs for protection of heavy vehicle wiring harnesses.
