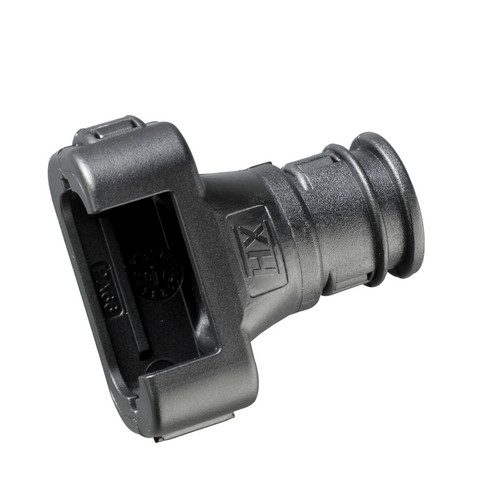

FCI Automotive Apex Interface
Single junction straight interfaces providing high integrity connections between FCI Apex connectors or Junior timer connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of slit and unslit conduit, maintaining maximum conduit bore.
- One-piece external design for unrestricted bore and quick assembly with no tools.
- High pull-off strength – conduit corrugations sit tightly into joiner junctions.
- Conduit size labels – each junction indicates nominal conduit size to aid installation
- Polyamide (Nylon) 66
- IP40 rated
- Temperature Range: -40ºC to 120ºC
- Very high UV resistance
- Self extinguishing, low smoke toxicity & halogen free
- CE Mark to the low voltage directive
- RoHS Compliant to 2011/65/EU
- Conforms with end of life vehicle directive (ELV) EU200/53/EC
