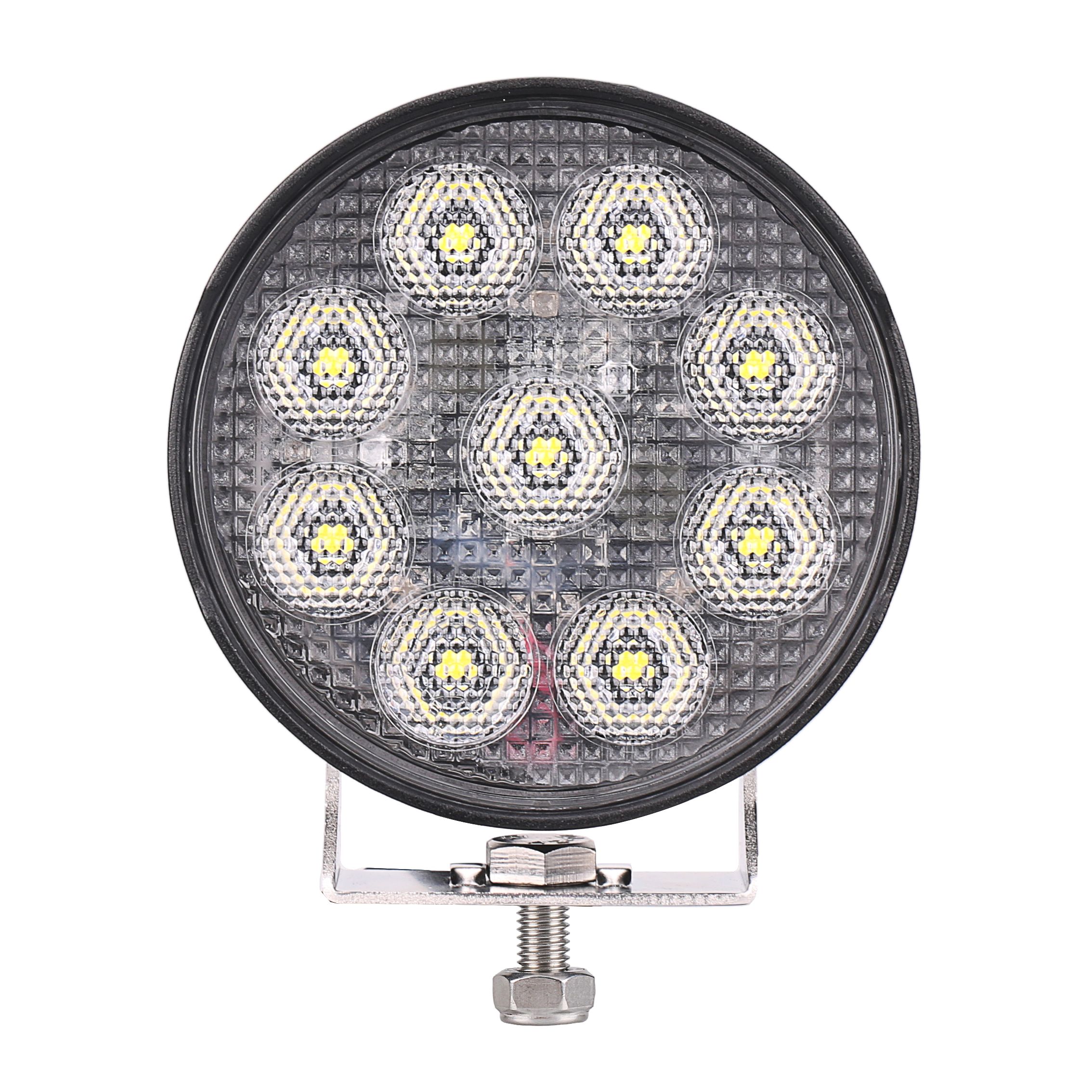

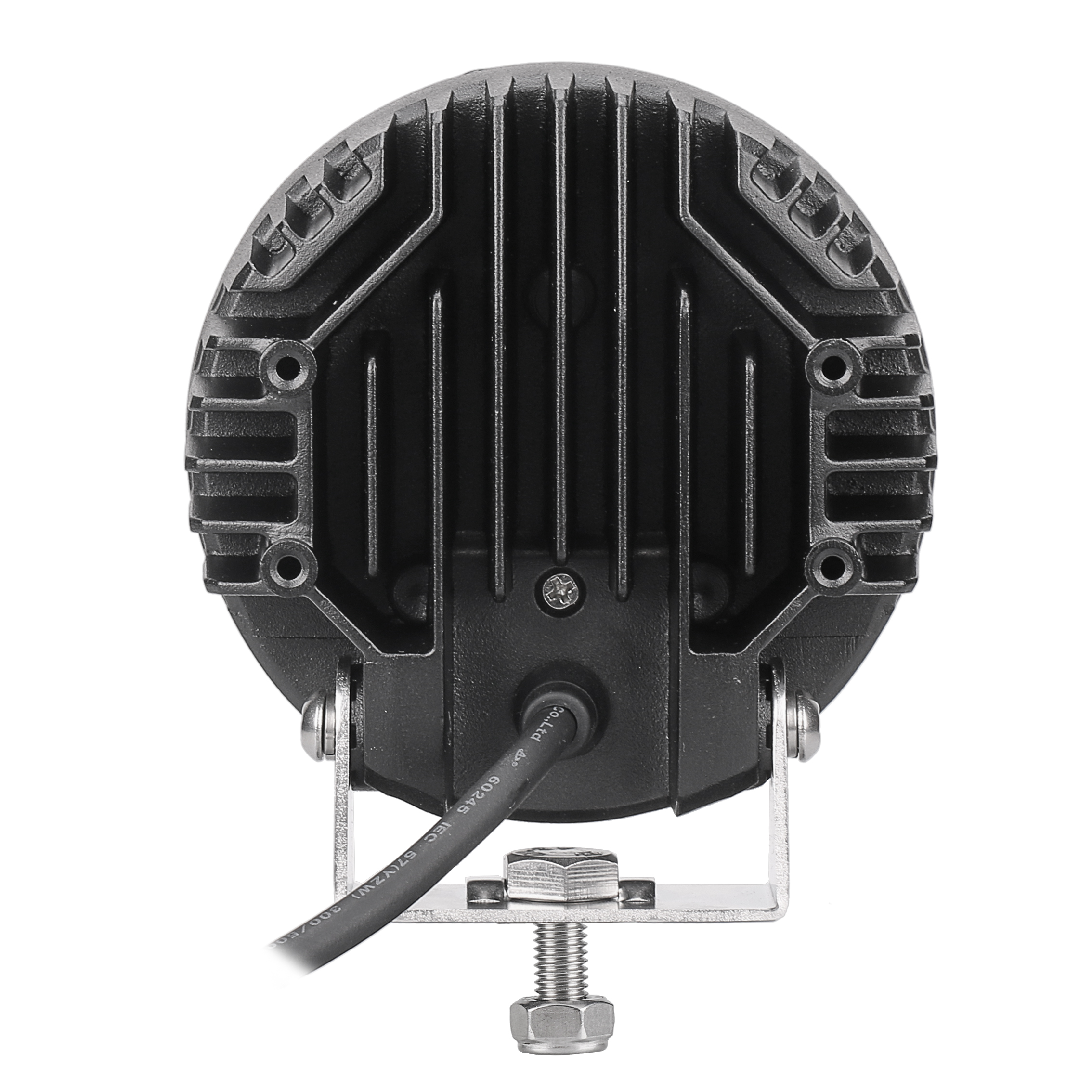

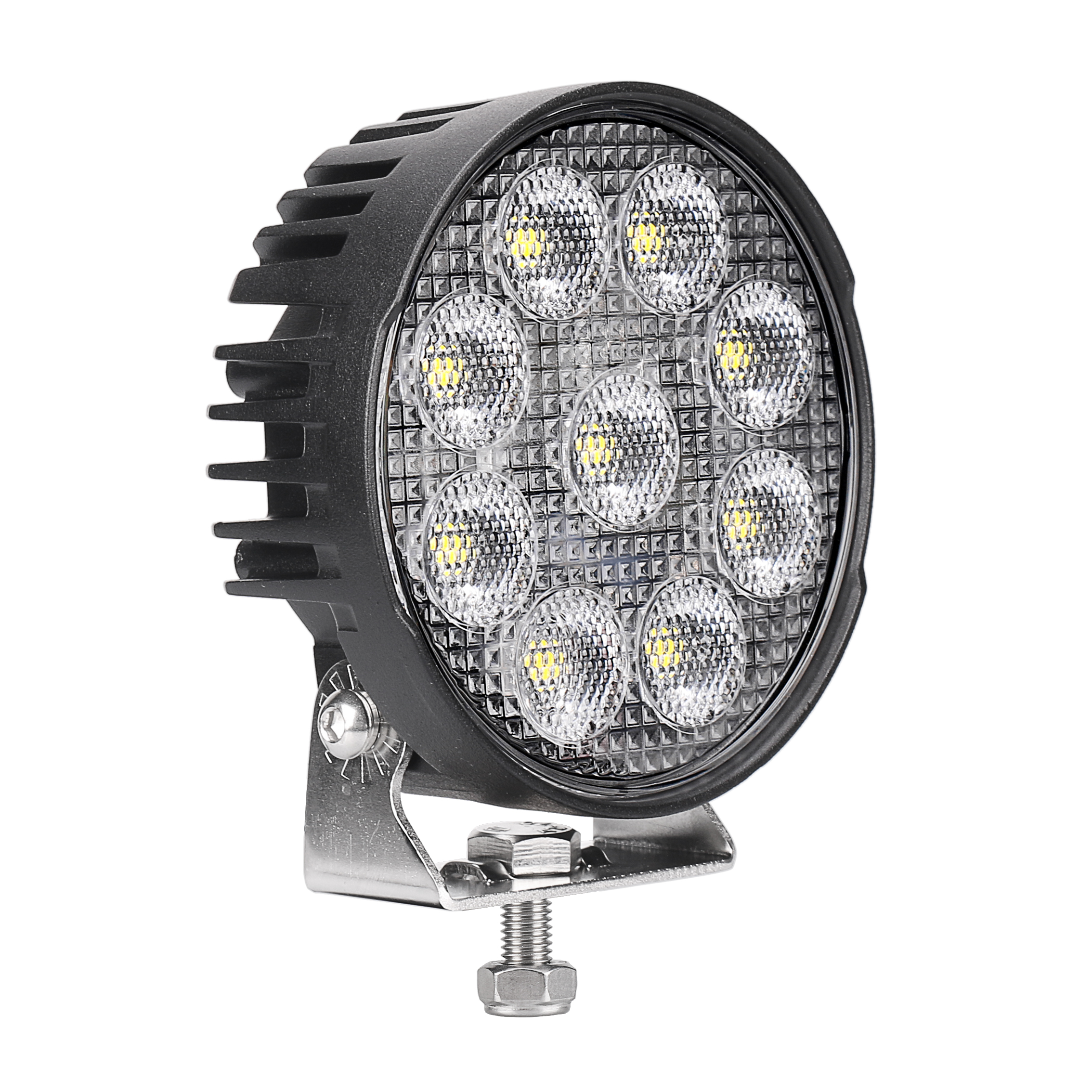

AES USA Flood LED Work Light LED703FL

The AES USA LED703FL Round Flood LED Work Light is designed to deliver high-intensity illumination for off-road vehicles and heavy-duty machinery. Featuring 16 high-performance OSRAM LED chips, this work light produces up to 5000 lumens of bright, pure white light, providing excellent visibility in low-light, night-time, and adverse weather conditions.

With a wide flood beam pattern, the LED703FL offers broad light coverage, making it ideal for work sites, off-road driving, and industrial environments. The light is built with a robust extruded aluminium housing, polycarbonate lens, and stainless steel components, ensuring durability and resistance to vibration, corrosion, and harsh outdoor conditions. Its IP67 rating protects against dust and water ingress, while EMC and R10 certifications ensure reliable electromagnetic compatibility for vehicle use.

An integrated Temperature Control System (TCS) helps maintain optimal performance and product longevity. When the housing temperature reaches approximately 75°C, the system automatically reduces power and lumen output to prevent overheating. Once the temperature drops, such as during vehicle movement or cooler conditions, the system increases power again to restore full lighting performance.

Supplied with mounting brackets and a wire harness, this LED work light is easy to install and suitable for a wide range of vehicles and equipment.

Key Features

• 16 × 6W high-performance OSRAM LED chips
• High output up to 5000 lumens
• Wide flood beam for improved work area illumination
• Intelligent Temperature Control System (TCS)
• Durable extruded aluminium housing
• Polycarbonate lens with stainless steel components
• IP67 rated for dust and water protection
• EMC and R10 approved for vehicle use
• One-year warranty

Technical Specifications

• LED Type: 16 × 6W OSRAM LEDs
• Power: 54W
• Operating Voltage: DC 10–30V
• Colour Temperature: 5700K
• Lumen Output: 5000 lm
• Beam Pattern: Flood
• Lux @10m: 120 lx

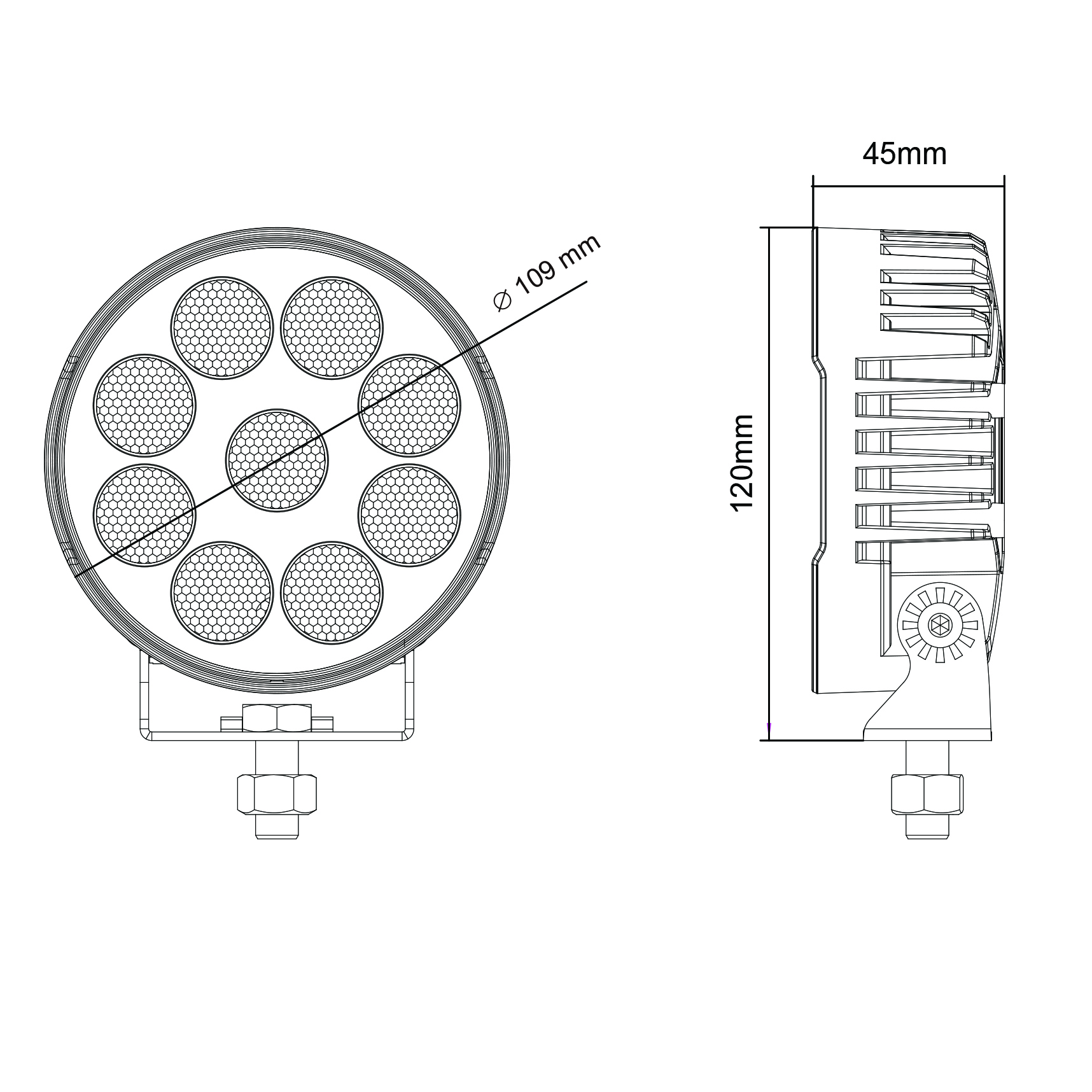

• Dimensions: 120 × 105 × 45 mm
• Operating Temperature: -35°C to +70°C
• Storage Temperature: -40°C to +100°C
• Lifespan: >30,000 hours
• Housing Material: Extruded aluminium
• Lens Material: Polycarbonate
• IP Rating: IP67
• Certifications: CE, EMC, RoHS, R10
• Warranty: 1 year

Applications

Suitable for off-road vehicles and heavy-duty equipment including 4×4 vehicles, ATVs, UTVs, trucks, forklifts, trains, boats, buses, and tanks. Also widely used on engineering machinery such as excavators, bulldozers, road rollers, cranes, and mining trucks, as well as emergency and service vehicles including fire engines, police vehicles, rescue units, and military command vehicles.
