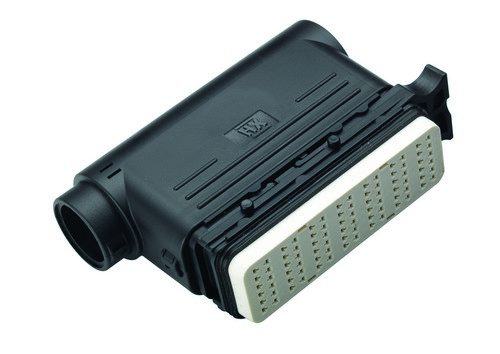

CI28-90-MX93286 MOLEX Interface

HX 93286 Series external split connector interface

90° elbow interfaces providing high integrity connections between various Molex series connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Add to quote
Please Note - All product images are for illustration purposes only. Actual product will vary depending on the specifications of the product selected.
Add to quote
SKU: CI28-90-MX93286 Category:
Description

HX 93286 Series external split connector interface

90° elbow interfaces providing high integrity connections between various Molex series connectors and Harnessflex conduit systems. These interfaces are designed to snap together over all types of Harnessflex slit and unslit conduit, maintaining maximum conduit bore. In addition, 90° elbow versions allow the conduit to swivel 360° around the connector housing.

Features
  • Split external design for unrestricted bore and quick assembly
  • Multiple configuration options – Provides the right conduit and outlet position option.
  • Provides protection and security for connector and cable outlet options without the need for short conduit joints.
  • Polyamide (Nylon) 66
  • IP40 rated
  • Temperature Range: -40ºC to 120ºC
  • Very high UV resistance
  • Self extinguishing, low smoke toxicity & halogen free
Conformity
  • CE Mark to the low voltage directive
  • RoHS Compliant to 2011/65/EU
  • Conforms with end of life vehicle directive (ELV) EU200/53/EC
Additional information
Brand

Harnessflex
About Harnessflex
Harnessflex Logo
Harnessflex ® is a leading designer and manufacturer of flexible conduit systems and connector interfaces that protect critical electrical wiring in the automotive industry. Harnessflex is principally focused on chassis and engine manufacturers within bus, agricultural and heavy duty vehicle markets. A wide range of slit and unslit corrugated flexible conduits are available in a variety of materials. Used in combination with Harnessflex sealed or hinged fittings or connector interfaces they can meet the exacting needs for protection of heavy vehicle wiring harnesses.
